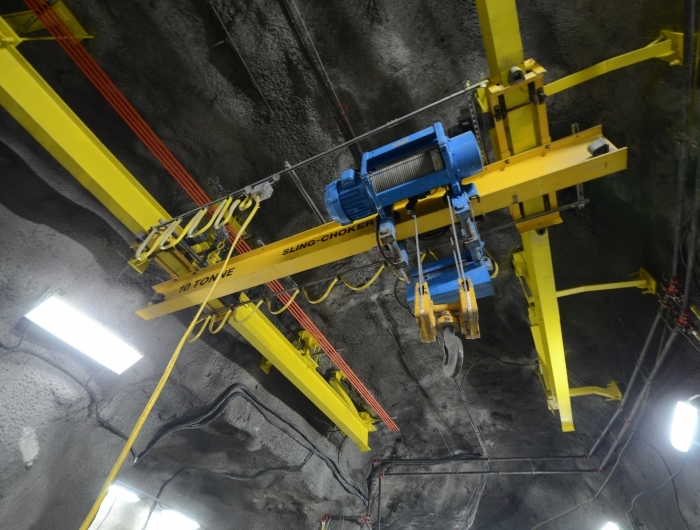

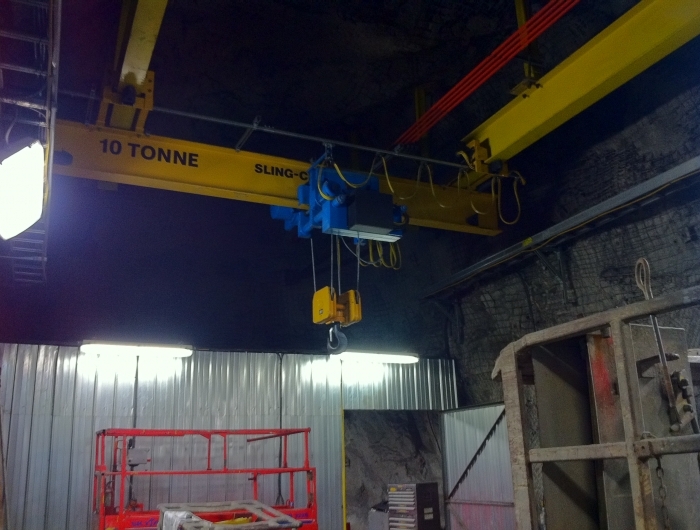

Rugged electric wire rope hoists built to last! Whether on your shop bridge crane, or one kilometre underground in a Northern Canadian mine, our wire rope hoists are engineered and manufactured to ensure a long life, even under the most rigorous usage.
Our rugged 3-phase dual speed electric lifting and trolley motors with integrated conical brake and integrated cooling fan are designed for the most rigorous of duty. Spring loaded, mechanically actuated brake guarantees a safe stop every time.
Permanently oil bathed 3-stage planetary speed reducer with heat treated bevel geared teeth for quiet operation. Hidden inside the drum, it allows for a more compact hoist with a better approach, as well as higher capacity lifts at higher lifting heights.
Three piece construction allows for easy assembly , while solid cast metal construction guarantees a long part life. Machine to match the treaded couture of the drum for smooth operation, while guide rollers maintain even consistency in pressure and tracking.
Standard thermal overloads on all hoists for motor protection . NEMA 4 enclosures. Mechanically interlocked reversing starters Pendant push buttons come equipped with support wire and emergency stop button. Schneider contactors, easy to replace off the shelf components.
Heat treated forged steel travel wheels directly driven through a live axle allow for smooth, quiet and maintenance-free operation.

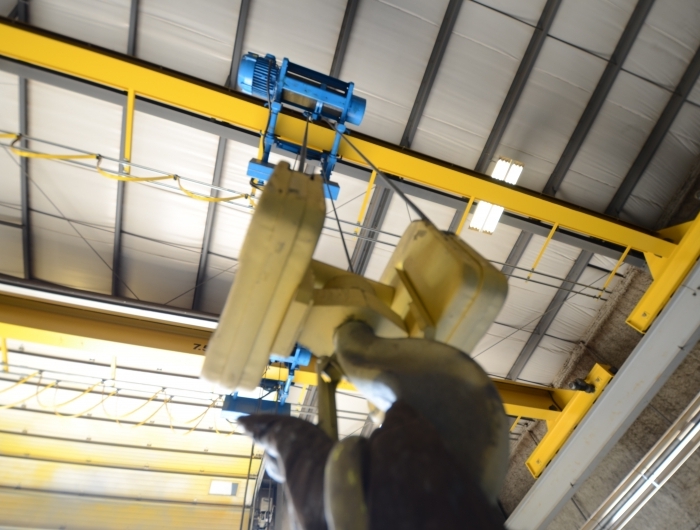

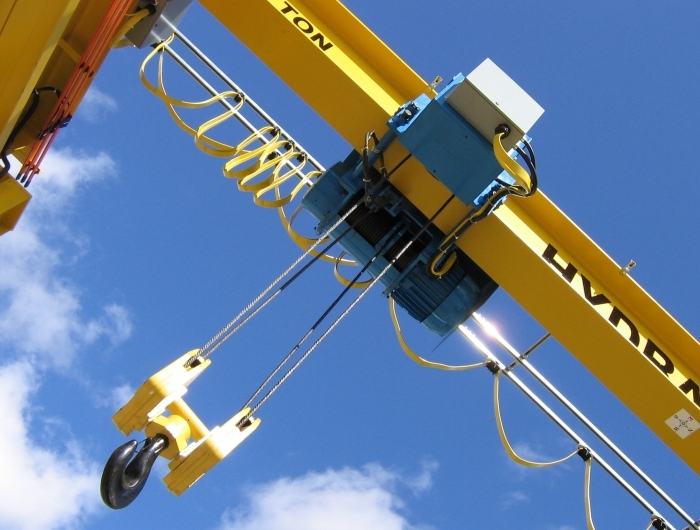

The best solution for a single girder crane keeping the hoist and trolley in a low profile to the bridge to provide the most working area under the hook.

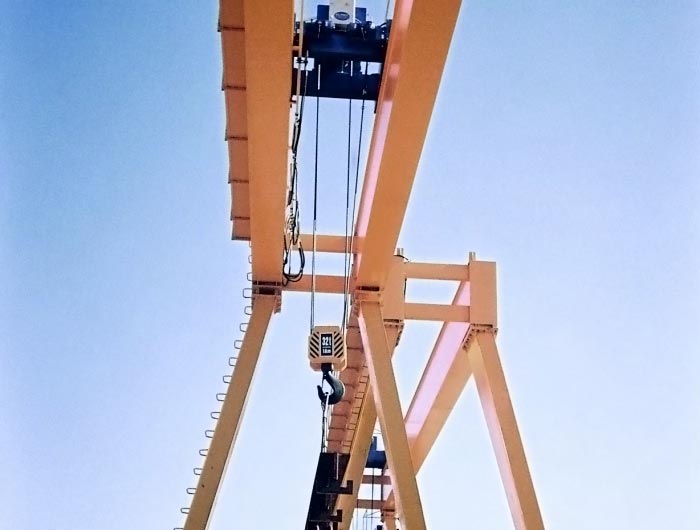

Used in double girder cranes, usually in heavier capacities, this execution has the hoist mounted on a trolley that runs on top of the two bridge girders.

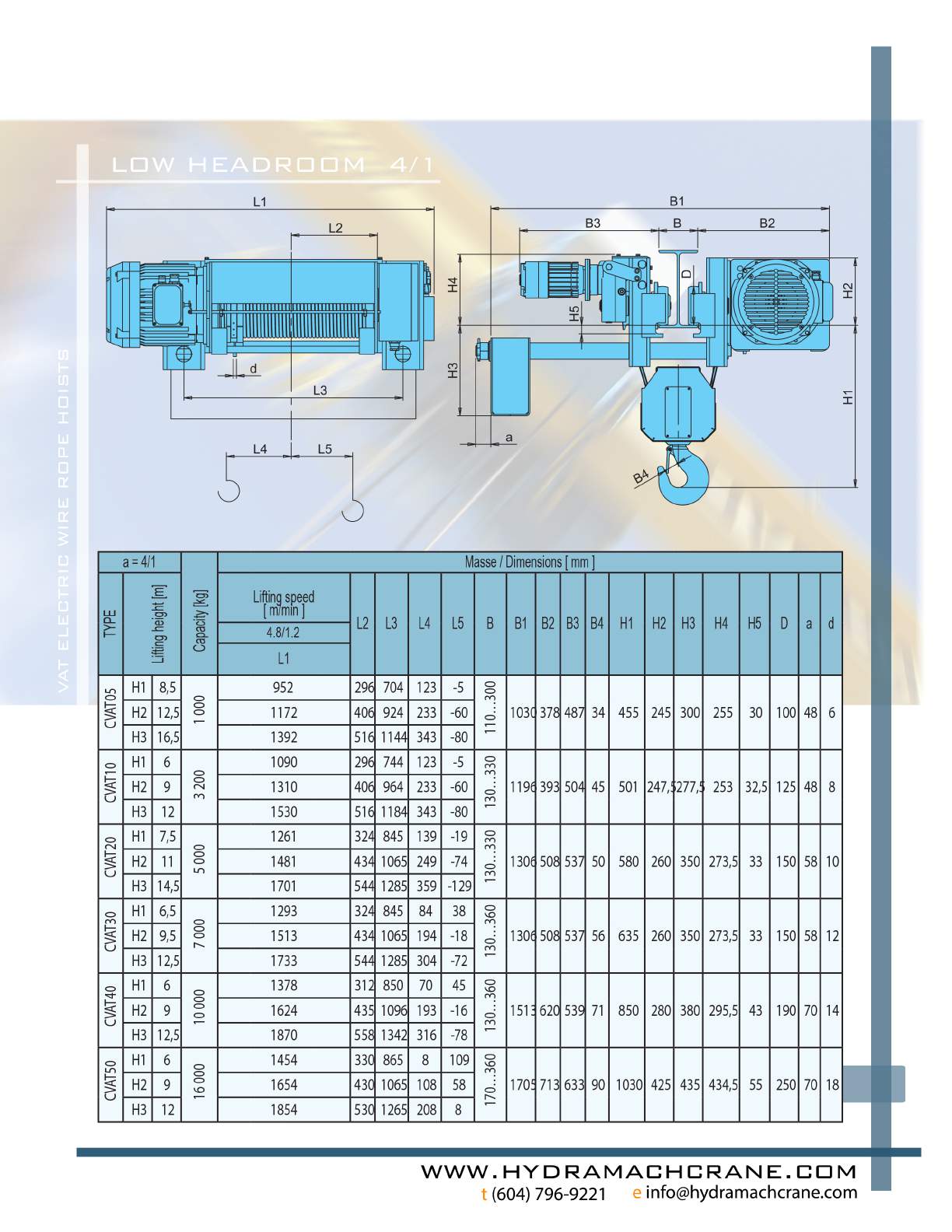

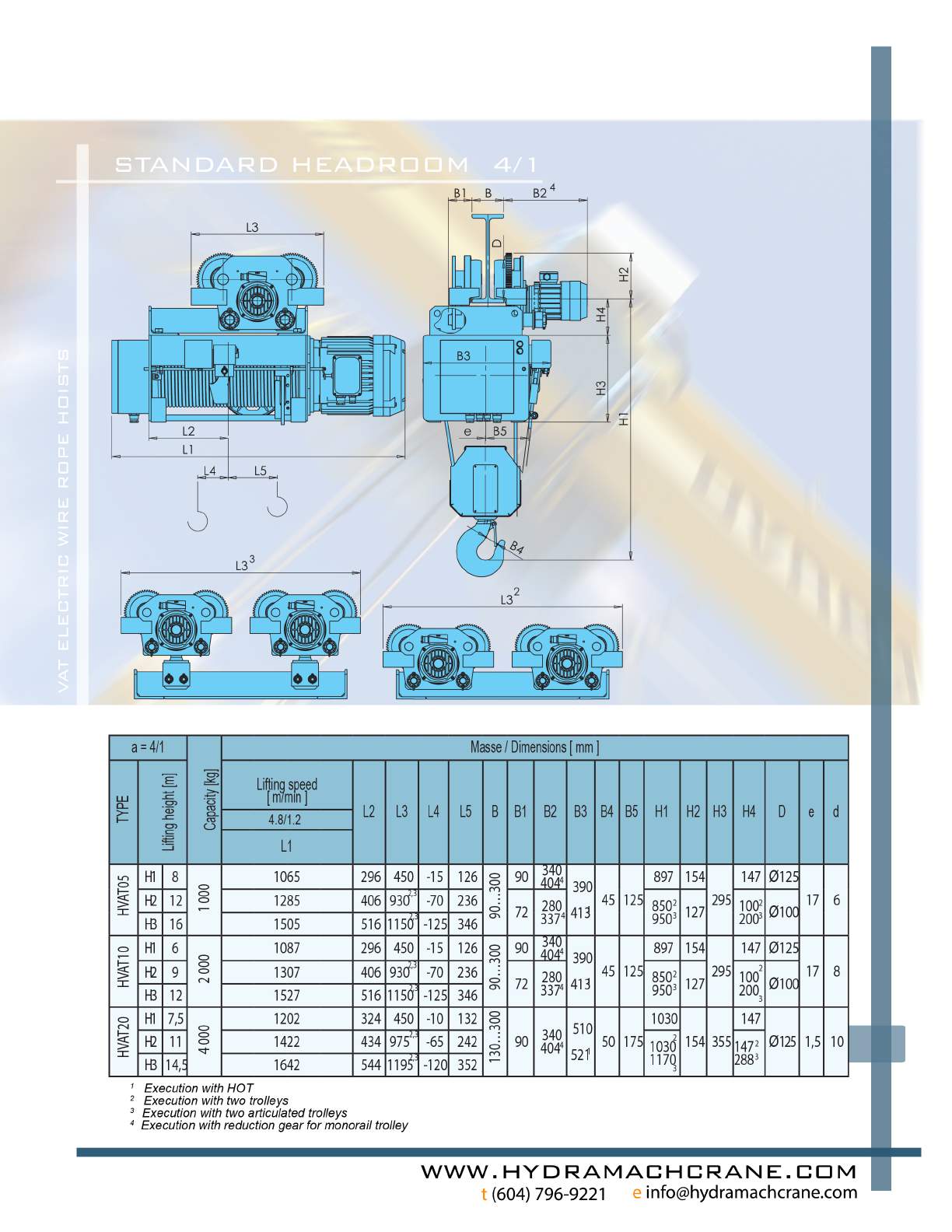

See our chart for a more complete list of specs.
